Blue 2-Station Tester for Desktop Micro-Drop Test of Electronic Products
Model : RS - DP - 04N
Purpose:
The Automatic Torsion Tester produced by Infinity-machine is specialized at the Torsion testing of the mobilephone & pad, it uses the servo motor from Panasonic, and THK precise ball screw and guide rail for the transmission.
Control of the testing system is via an Infinity-machine proprietary software program designed specifically for materials testing. Setting test parameters, operating the system, collecting and analyzing test data is done through the software program.
Specialties:
This equipment adopts Japanese Panasonic AC Server motor to control up and down, Japanese SMC vacuum sucker to absorb products (small product dropping adopts SMC pneumatic cylinder finger to clamp), SMC cylinder homing product, touch panel controlling server motor , touch panel controlling magnetic valve which controls cylinder movements as absorption, stretching and retraction, etc.
Specification:
| Allowable maximum sample size | W300xL300xD30mm |
| Allowable minimum sample size | W60xL100xD8mm |
| Allowable product weight | 100～2500gf |
| Dropping height range | 50～300mm |

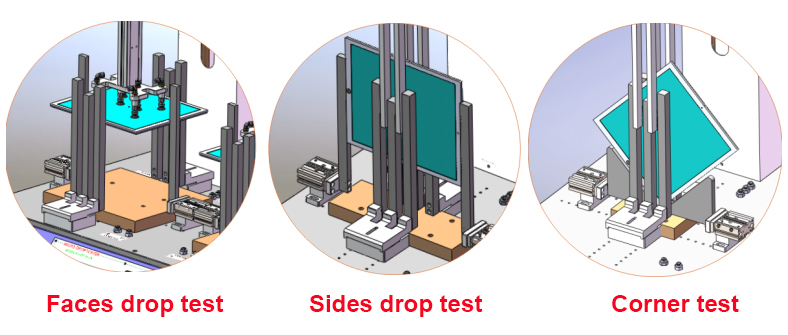

| Dropping way | Faces sides and corners |
| Dropping medium | Steel base, wooden base and marble base |
| MGPM16-30 stroke of location cylinder | 30mm |
| Up & down driving way | servo driving and synchronous belt transmission |
| Stroke of MHZ2-25D clamping cylinder | 14mm |
| Force of MHZ2-25D clamping cylinder | 104N(max) |
| ZPT20UN-B8 adsorption of vacuum sucker | 2.13kgf(500mmHg) |
| Test cycle setting | 1～999999times |
| Testing speed | 2～15times/min |
| Air supply | ≧0.6MPa |
| Dimension | W1400xD1040xH1025mm |
| Weight | About 285kg |
| Power | AC100V 8A |
| Emergency stop time | 100ms |
Principle of Operation:
Operators merely choose dropping mode and pickup mode in touch panel, i.e. setting test times, dropping height, pickup height, cylinder location time, pickup time, press start test, touch panel controls server motor lifting, electromagnetic valve controls cylinder movements, stretching out or retraction, and suckers suck or( pneumatic cylinder clamps) samples to conduct dropping test.

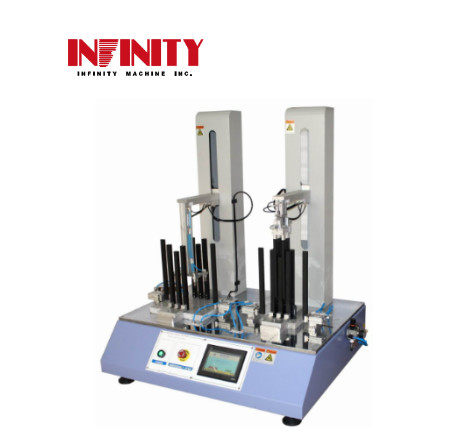

Product Show:

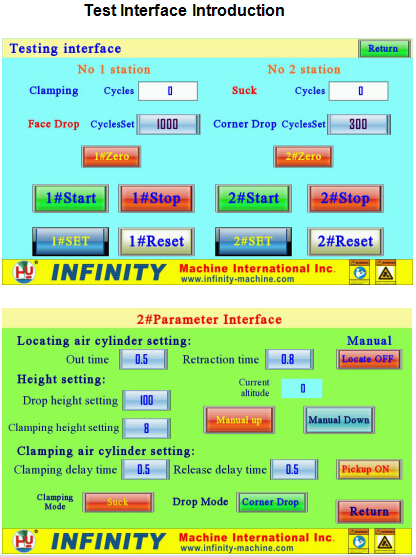

Test Introduction:
